Ātrie vārti RIPO WindSpeed

Preces kods: AVWS

  • Āra vārti
  • Atvēršanas ātrums: 1,1 m/s (maks. 1,8 m/s)
  • Vārtu materiāls: PVC
  • Materiāla biezums: 0,7 mm (1,2 mm)
  • Vēja pretestības klase (EN12424): 5
  • Maksimālais Plat. x Augst.: 6000 x 6000 mm
  • Strāvas pieslēgums: 3 x 400V (1 x 230V)
  • Iebūvēta caurspīdīga loga daļa


High-speed and intensive use for exterior


RIPO WindSpeed folding door has been developed for intensive use in outside openings to 36m2. Ideal for the fast daily passage of forklift trucks and large goods. The door curtain is equipped with a large number of reinforcing profiles and a unique folding technique, as a result it remains extremely stable even in case of high wind pressure. The fully closed covers and the materials used make the RIPO WindSpeed door suitable for long-term use under all conditions. As standard, two rows of windows at eye level for safety and traffic visibility.

Application

  • Supermarkets
  • Food industry
  • Laboratories
  • Light Industry

WindSpeed Benefits:

Wind resistant up to hurricane force!

The unique folding construction and the materials used make the WindSpeed extremely reliable and robust, even under harsh conditions: high wind pressure, rain and dust, etc. Wind resistance up to Class 5 according to EN 12424.

safe

Fitted as standard with Opto-sensors in the lower beam - as soon as the lower beam touches something, the door opens immediately. The door opening is secured also with safety photocells in standard version of door.

Suitable for external wall mounting

Solid the guide columns and the drive are completely encased in watertight steel caps. This makes the WindSpeed suitable for outside mounting.

Application examples:

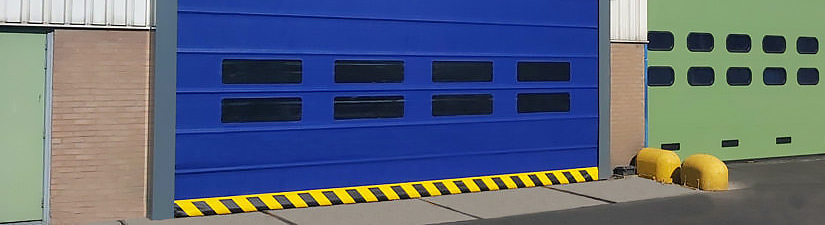

Do you have an existing sectional door? If so, you can save a lot on energy costs, processing speed and absenteeism. If you leave the sectional door open during the day, you will lose a lot of energy. The draught will not do your employees any good. If you open and close the sectional door every time someone has to pass through it, you will lose a lot of valuable production time. Moreover, your personnel will be waiting in the draught for a long time until the passageway is free. By fitting the RIPO WindSpeed on the outside against the facade you can easily do away with the disadvantages of the existing, slower sectional door.



Dusty or dirty product's manufacturing. This makes the frequent use of high-speed roll-up doors difficult, because dust and dirt get stuck in the fabric while it is being rolled up. The curtain in the guide track can also can be damaged if too much debris accumulates. With the RIPO WindSpeed this is not possible due to the folding method. Moreover, the extra strong door curtain is virtually unaffected by dust or dirt. The rest of the construction is also not affected. This makes the WindSpeed ideal for waste processing companies and all other companies where a lot of dust and dirt accumulates.



You can close all large passages with a WindSpeed. Heavy traffic, high wind pressure, weather conditions, dust and dirt - the RIPO WindSpeed will continue to function reliably.

RIPO door set

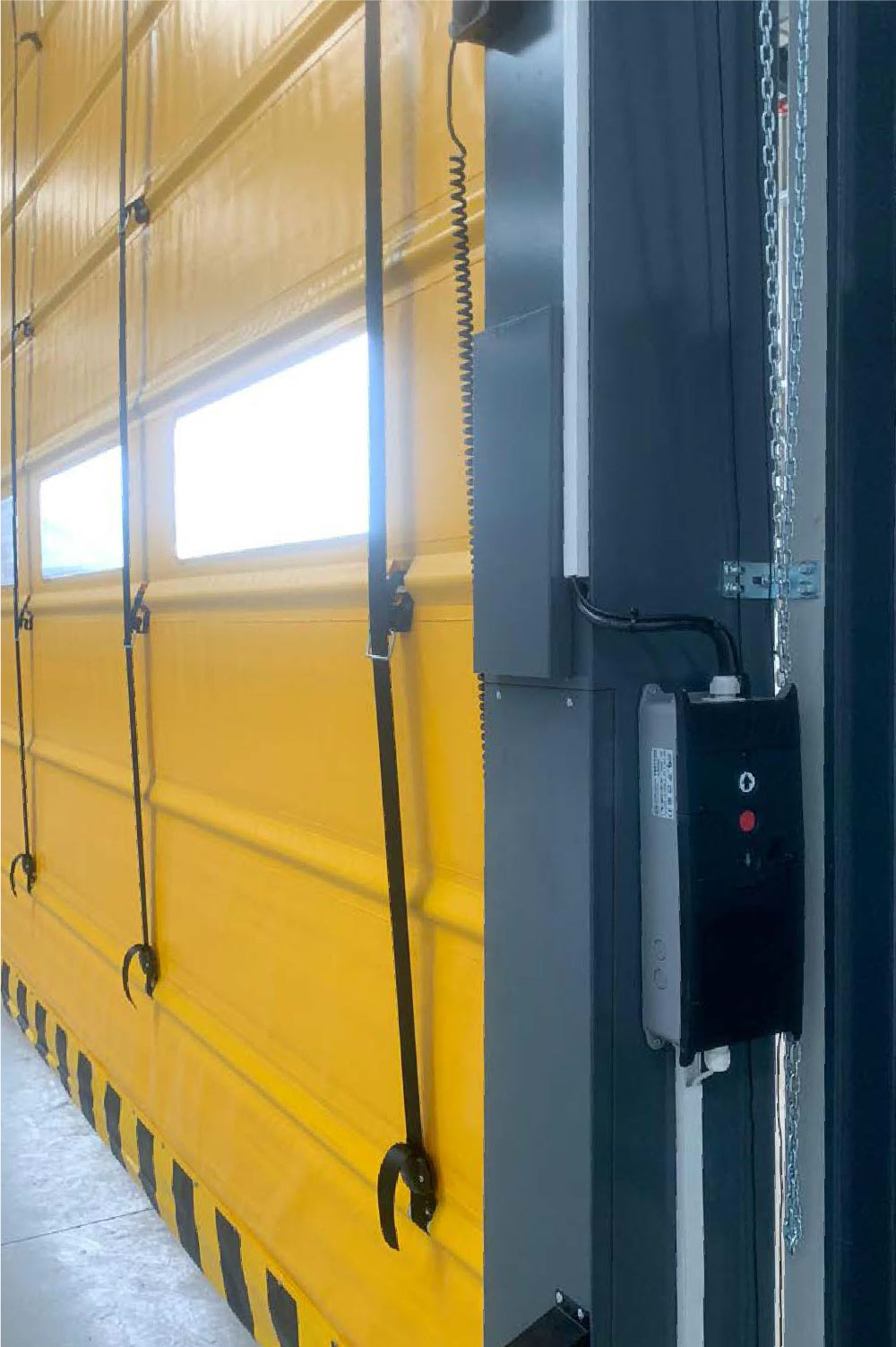

All types of RIPO fast doors are equipped with Drive and Control unit. Door main components as standard accessories and optional features:

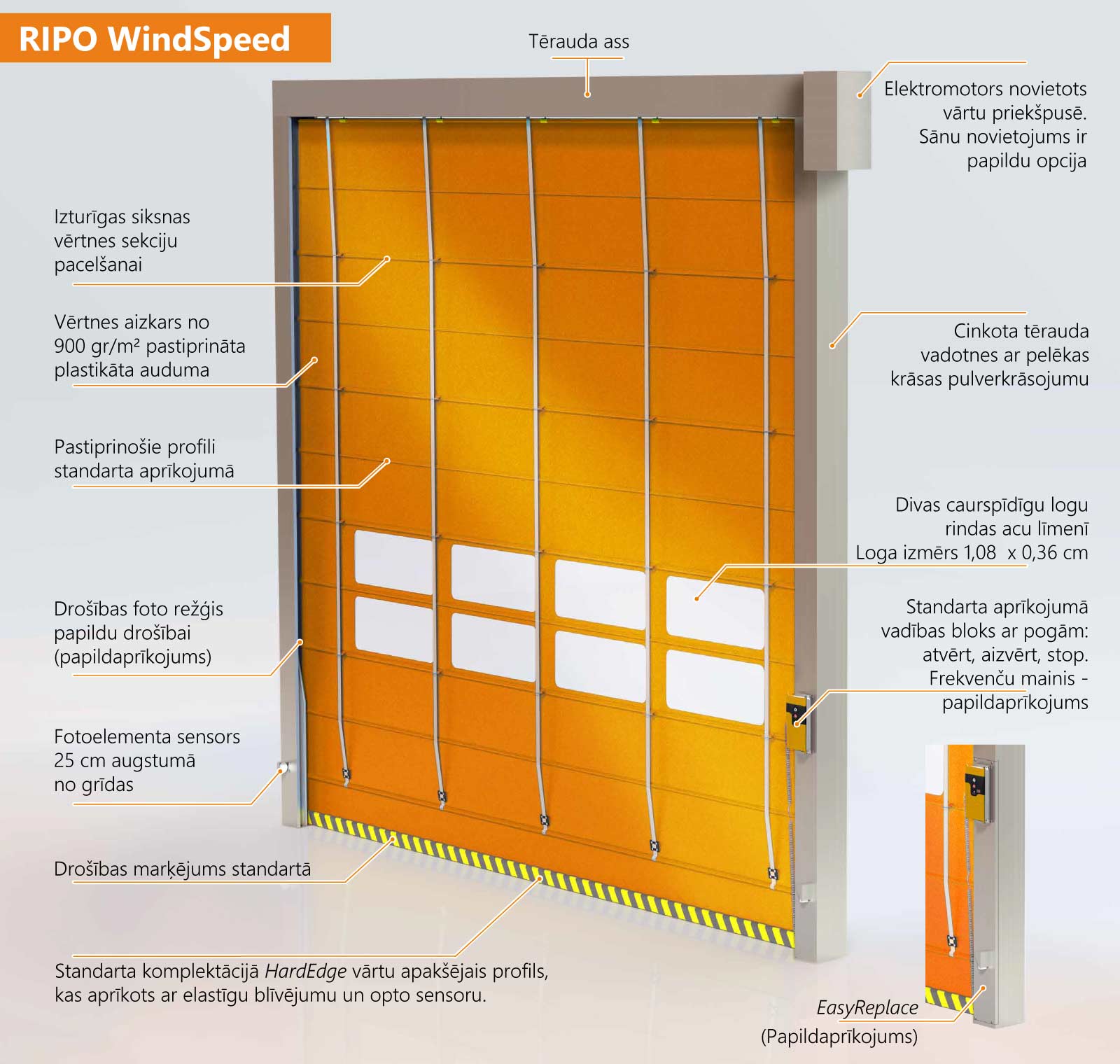

Standard equipment of WindSpeed doors contains:

  • Reinforced profiles.
  • HardEdge bottom beam for Stability and wind resistance.
  • Photocell protection 250 mm from the floor.
  • Transparent windows. Two rows of windows (1.080 x 360 mm) at eye level.
  • Powder coated columns in RAL7011 color.
  • Tested and approved. BS EN13241:2003+A2:2016 compliant.

Options:

  • Frequency control - Rapid control with soft start/stop function.
  • Safety light curtain. Securing the passageway up to 2.5m high.
  • EasyRepair. Repair the door without tools / assistance.
  • Stainless steel columns. Easy to clean and never rust.



Controls

Following types of door controls compatible to the speed doors and ensures Operation or Safety or both functions.

Push-buttons

Operation

Pushbuttons are mainly used in personnel traffic. For situations where one‘s hands are not always free, a mushroom push button or a contactless ClearWave button is a solution.

Pull switch

Operation

The pull switch has a long cable hanging a few metres in front of the door. It can be operated on foot or from a forklift truck without the driver having to get out. Very efficient when there is a lot of forklift traffic.

Remote control

Operation

A remote control (with transmitter and receiver) offers the possibility of selective operation. Only those persons and vehicles that have a remote control can operate the door. Available with one or several channels.

Contact-less switch

Operation

The non-contact door switch ClearWave is similar to an ordinary push button, with the difference that it does not need to be actually touched. Ideal in food environments or clean rooms.

Infrared sensor

Operation and Safety

The sensor Ixio-S is a smart presence detector with active infrared technology. The three-dimensional infrared curtain protects persons from contact with the door. For indoor applications up to H = 3,500 mm.

Dual sensor

Operation and Safety

The Ixio-D is a sensor for opening door. It combines radar technology with infrared technology for the protection of people against contact with the door. Indoor use up to H = 3,500 mm.

Metal detector

Operation and Safety

Every metal object within this field is detected. An induction loop detector produces a magnetic field. Suitable as a control, but also as an extra security in case of high speed forklift transport.

Motion detector

Operation and Safety

Radars can only detect moving objects. The radar has a conical detection area and is direction-sensitive. The size, direction and sensitivity of the radar field are adjustable. Also for outdoor use.

Dual detecor

Operation and Safety

The Condor has a microwave motion detector and an active infrared presence sensor for detecting stationary objects built in the same device. Also suitable for outdoor use.

Photocell sensor

Safety

Photocell sensor are mainly used to monitor the door opening. The door will not close when the photocell beam is interrupted. Designs with a reflector and with a transmitter and receiver are available.

Light curtain

Safety

A light curtain has a larger detection range and thus provides greater safety than a photocell. This form of detection is particularly suitable for a wide range of transport sizes.

Laserscanner

Safety

The Laserscanner LZRR-i100® features high-precision technology: the dynamic direction of the laser beams on four levels provides optimum protection of the door threshold and surroundings. Maximum detection area 9.9 m x 9.9 m.

For RIPO WindSpeed door available as standard door curtain ir RAL colours:

1003
2004
3002
5002
5015
6026
7038
9016
9005

Fast door RIPO WindSpeed door dimensions and installation requirements



RIPO WindSpeed in action:
