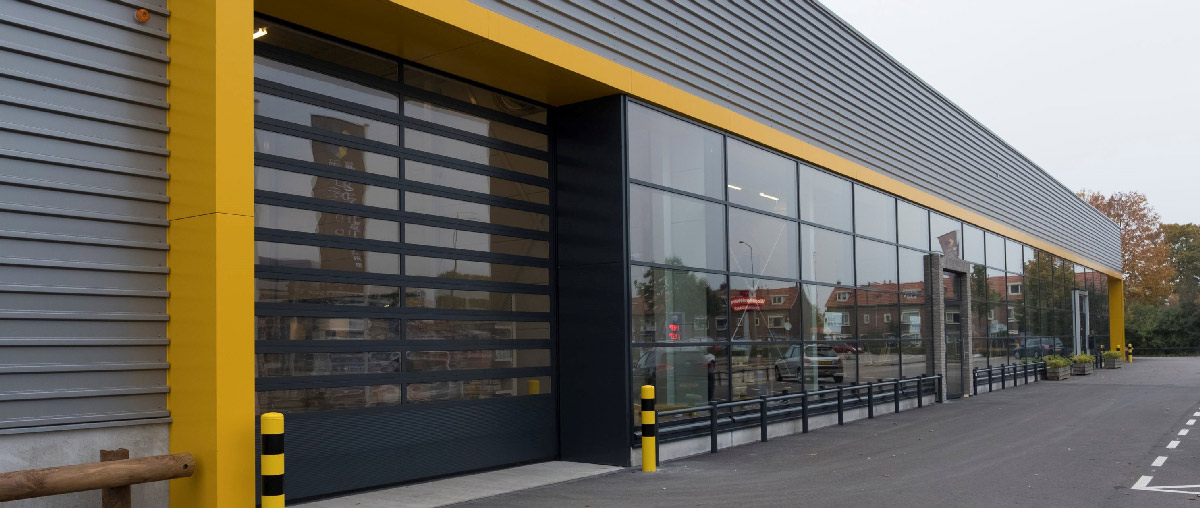

Ātrie vārti RIPO TermoSpeed

Preces kods: AVTS

  • Siltinātie āra vārti
  • Atvēršanas ātrums: 1,1 m/s
  • Vārtu materiāls: ISO paneļi
  • Materiāla biezums: 40 mm
  • Vēja pretestības klase (EN12424): 3
  • Maksimālais Plat. x Augst.: 5000 x 5000 mm
  • Strāvas pieslēgums: 3 x 400V
  • Iespējamas caurspīdīgas logu sekcijas





Insulated! High-speed and intensive use for exterior


Two in one! Traditionally, two doors are often mounted in frequently used exterior openings: an thermally insulated door for use at night and as high-speed door use during the day. ThermoSpeed combines the best of two doors into one. An investment that pays off in the shortest possible time, as instead of two different doors, you require only one door. As result, you are saving the space at your premises and heat energy costs keep reduced by opening and closing exterior doors at high speed. Door contains innovative new spiral winding system, modern hinges and rollers. Door requires small place and can be installed into a headroom of only 600 mm.

Application

  • Logistics
  • Automotive
  • Mechanical engineering
  • Metal – electrical industry
  • Pharmacy and chemistry

TermoSpeed door Benefits:

Fast

These door opens 6 times faster than comparable sectional doors. The door leaf is directly driven by a patented chain / steel cable system, which makes the ThermoSpeed unprecedentedly fast.

Saves heating energy

Extra energy-saving due to 40 mm thick insulated door panels. This door has high insulation value U = 1.77 W / m²K, at size up to 5,000 x 5,000 mm.

Low maintanance

Door needs less frequent service, due to the intelligent drive-system and absence of Springs. Functionality of Counterbalance ensures patented drive system, instead of Springs. This system service period is up to 200,000 cycles.

Perfect for limited installation space

If you have limited installation space. The door needs only 600 mm headroom above door in modification with traditional rail system, or only 1100 mm height in modification with spiral winding system.

Application examples:



Frequently used doorways offer the advantages of a rapid roll door and a sectional door in one! You can save a lot on energy costs, throughput and personnel costs due to the fast opening time. With the additional advantages that the TermoSpeed is extremely well insulated and can be closed at night.

An investment that quickly pays for itself!



Space-saving The RIPO TermoSpeed spiral door is a contemporary innovation that takes up hardly any installation space thanks to innovations such as the spiral system and the chain drive. The door is not folded but rolls up, with the panels not touching each other. This prevents wear of the door. A TermoSpeed particularly offers a solution in spaces where the ceiling construction does not provide room for an overhead door.

RIPO door set

All types of RIPO fast doors are equipped with Drive and Control unit.

Standard equipment of RIPO TermoSpeed door contains:

  • Frequency control with soft start/stop functionality
  • Springless drive system, which are-assembled and has low maintenance
  • Safety light curtain - securing the passageway up to 2.5m high
  • 40 mm ISO panels for good insulation and stability

Insulated ISO sections

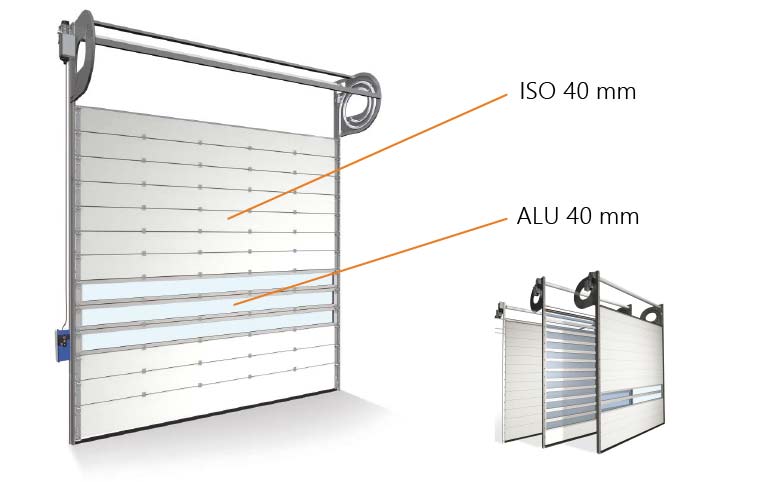

TermoSpeed is extremely well insulated as the door leaf has 40 mm thick ISO panels in standard product set-up. On additional request door leaf can be equiped with sections of high quality transparent ALU panels in aluminium framing. The bottom section of the ALU doorleaf will always be an ISO section. This bottom section panel min height size is 366 mm and max 610 mm. Intermediate ALU section height size can vary from 250 mm to 360 mm, but ISO panel height is fixed - 360 mm.

  • U-value of ISO 40 mm panels is 1.77 W/m2K for door leaf size 5000 mm x 5000 mm
  • U-value of ALU 40 mm panels is 4.25 W/m2K for door leaf size 5000 mm x 5000 mm





For limited installation space

Ripo TermoSpeed is perfect for limited installation space. If you have limited installation space above, the door needs only 600 mm height in modification with traditional rail system, or only 1100 mm height in modification with spiral winding system.

Snow

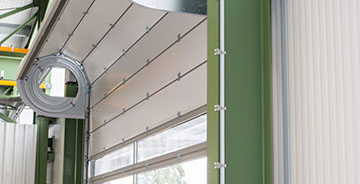

Spiral winding system
(standard)

Snow

Traditional rail system
(optional)



System

These doors open 6 times faster than comparable sectional doors. The door leaf is directly driven by a patented chain / steel cable system, which makes the ThermoSpeed unprecedentedly fast. Door needs less frequent service, due to the intelligent drive-system and absence of Springs. Functionality of Counterbalance ensures patented drive system, instead of Springs. This system service period is up to 200,000 cycles

Drive-concept
The uninterrupted chain-steel-cable system ensures precise and controlled door movement even at high speed.

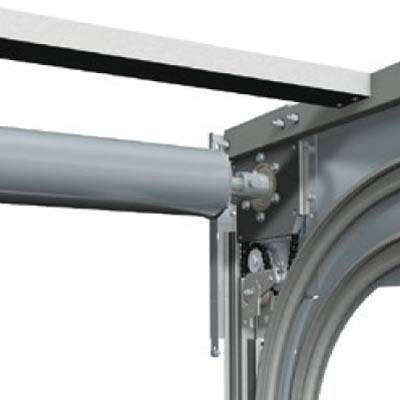

Torque-tube
The TermoSpeed are equipped with a direct drive aluminium Torque-tube and is without spring assistance.

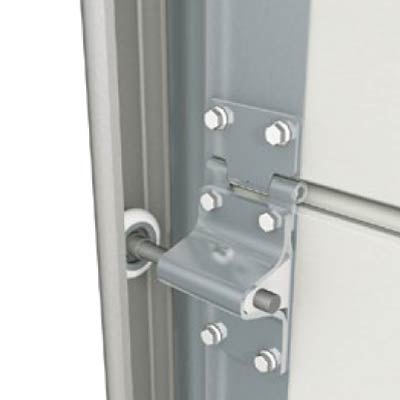

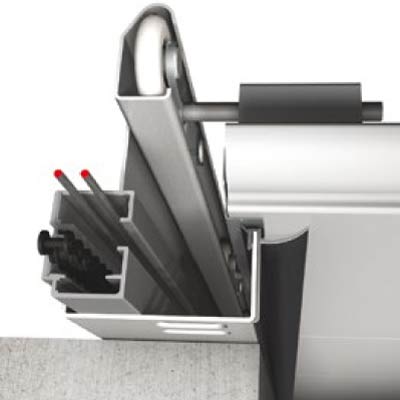

Compact Side-hinges
For extra safety the panel connecting hinges are almost flat and ensure a perfect seal with the vertical side seals

Controls

Following types of door controls compatible to the speed doors and ensures Operation or Safety or both functions.

Push-buttons

Operation

Pushbuttons are mainly used in personnel traffic. For situations where one‘s hands are not always free, a mushroom push button or a contactless ClearWave button is a solution.

Pull switch

Operation

The pull switch has a long cable hanging a few metres in front of the door. It can be operated on foot or from a forklift truck without the driver having to get out. Very efficient when there is a lot of forklift traffic.

Remote control

Operation

A remote control (with transmitter and receiver) offers the possibility of selective operation. Only those persons and vehicles that have a remote control can operate the door. Available with one or several channels.

Contact-less switch

Operation

The non-contact door switch ClearWave is similar to an ordinary push button, with the difference that it does not need to be actually touched. Ideal in food environments or clean rooms.

Infrared sensor

Operation and Safety

The sensor Ixio-S is a smart presence detector with active infrared technology. The three-dimensional infrared curtain protects persons from contact with the door. For indoor applications up to H = 3,500 mm.

Dual sensor

Operation and Safety

The Ixio-D is a sensor for opening door. It combines radar technology with infrared technology for the protection of people against contact with the door. Indoor use up to H = 3,500 mm.

Metal detector

Operation and Safety

Every metal object within this field is detected. An induction loop detector produces a magnetic field. Suitable as a control, but also as an extra security in case of high speed forklift transport.

Motion detector

Operation and Safety

Radars can only detect moving objects. The radar has a conical detection area and is direction-sensitive. The size, direction and sensitivity of the radar field are adjustable. Also for outdoor use.

Dual detecor

Operation and Safety

The Condor has a microwave motion detector and an active infrared presence sensor for detecting stationary objects built in the same device. Also suitable for outdoor use.

Photocell sensor

Safety

Photocell sensor are mainly used to monitor the door opening. The door will not close when the photocell beam is interrupted. Designs with a reflector and with a transmitter and receiver are available.

Light curtain

Safety

A light curtain has a larger detection range and thus provides greater safety than a photocell. This form of detection is particularly suitable for a wide range of transport sizes.

Laserscanner

Safety

The Laserscanner LZRR-i100® features high-precision technology: the dynamic direction of the laser beams on four levels provides optimum protection of the door threshold and surroundings. Maximum detection area 9.9 m x 9.9 m.

For RIPO TermoSpeed door exterior surface available the following RAL colours:

9002
9006

The Inside of door is supplied in RAL colour:

9002

In addition to the standard colours, the door leaf is available in any desired RAL colour (with exception of fluorescent and traffic colours).

Fast door RIPO TermoSpeed Dimensions and installation requirements



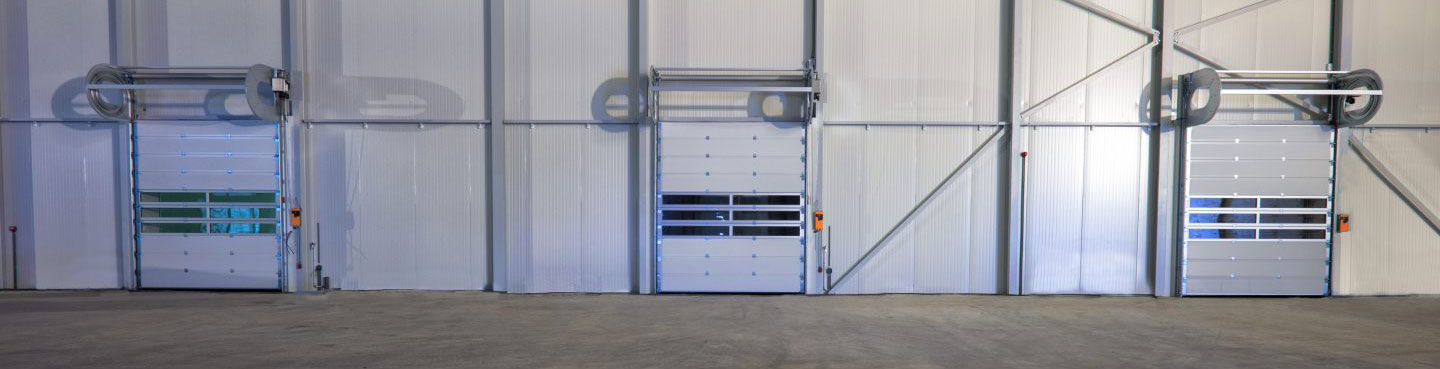

RIPO TermoSpeed door in action:




TermoSpeed fast doors can be modified depending on available installation space. There is option to apply Traditional track system instead of Spiral wind-up system, if space for the system is available.

Spiral wind-up system

Standard track system
